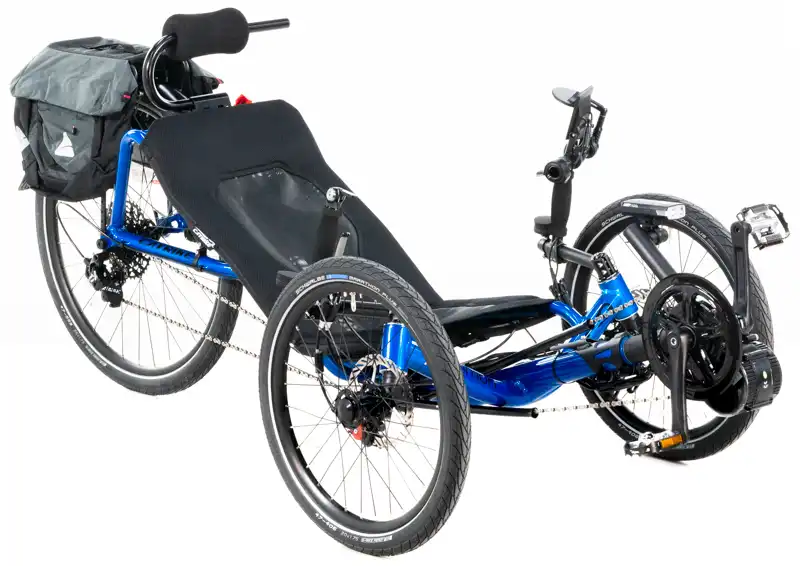

Catrike Expedition Recumbent Trike
- $200.00 OFF SALE

Starting at $2950
Sale Price $2750

Availability to make custom builds: 9 In Stock

Our most popular adult trike, the Catrike Expedition is a Sport-Luxury recumbent trike with a wide track and long wheel base. Great for long distance touring, the Expedition is a fast machine with a wide gear range.
The Expedition can also be a comfortable racer. Just throw some fast tires on it and bring the speed up. Take a look at our Expedition recumbent trike builds and you'll get the idea.

TOTAL: $2750

+ $199 Shipping

Rider Height:Select Rider Height
Color:Select
, , , , , , , , , , , ,
Boom:Select
Optional Boom Easy Adjust:Select

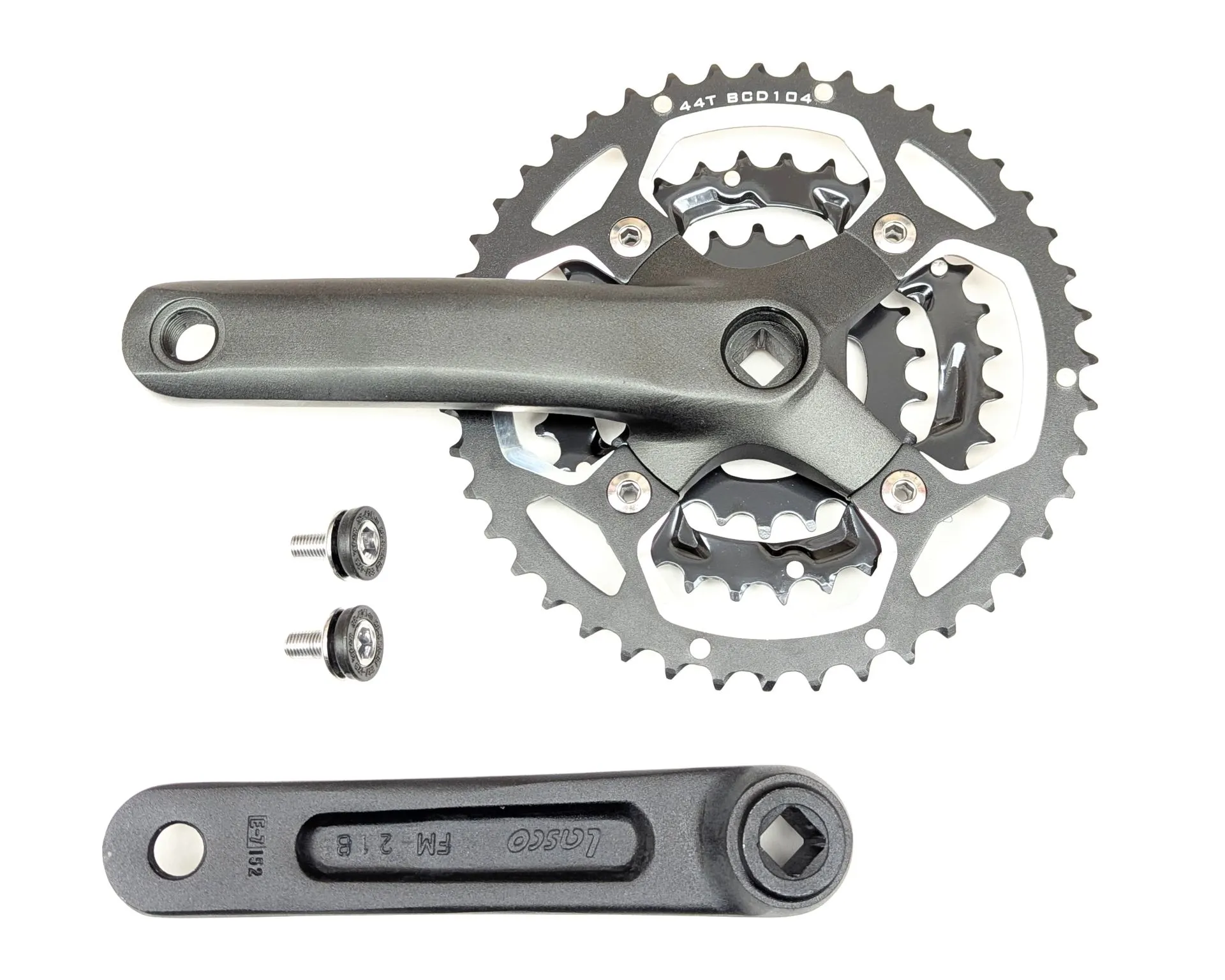

Front Gearing:Select
, , , , , , , , , ,
Front Wheels:Select
Rear Gearing:Select
, , ,

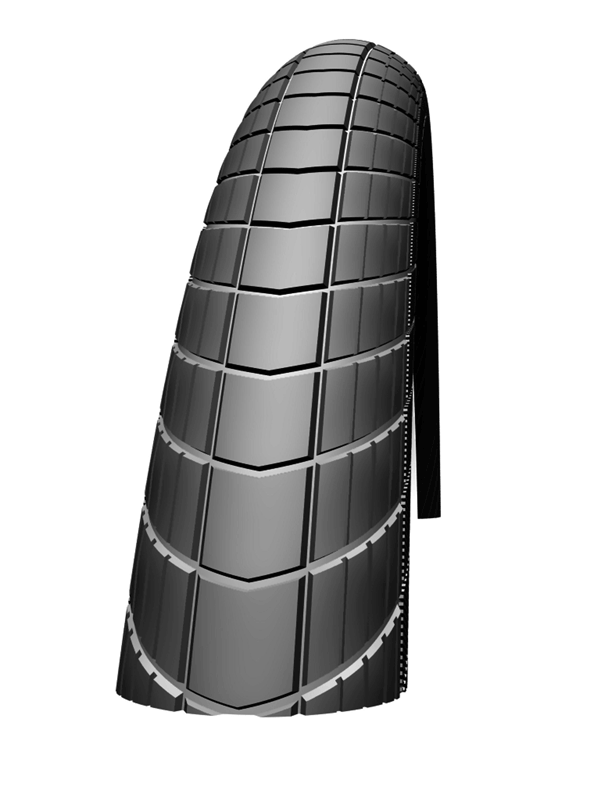

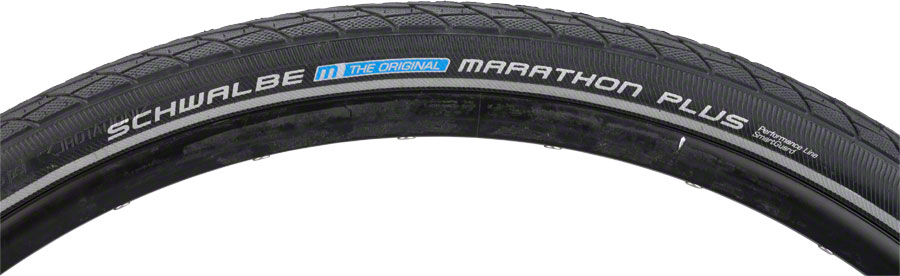

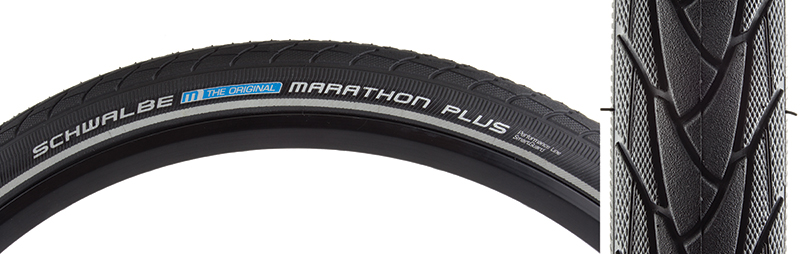

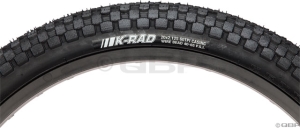

Front Tires:Select
, , , , , , , , ,
Rear Tire:Select
, , , , , , , , , ,

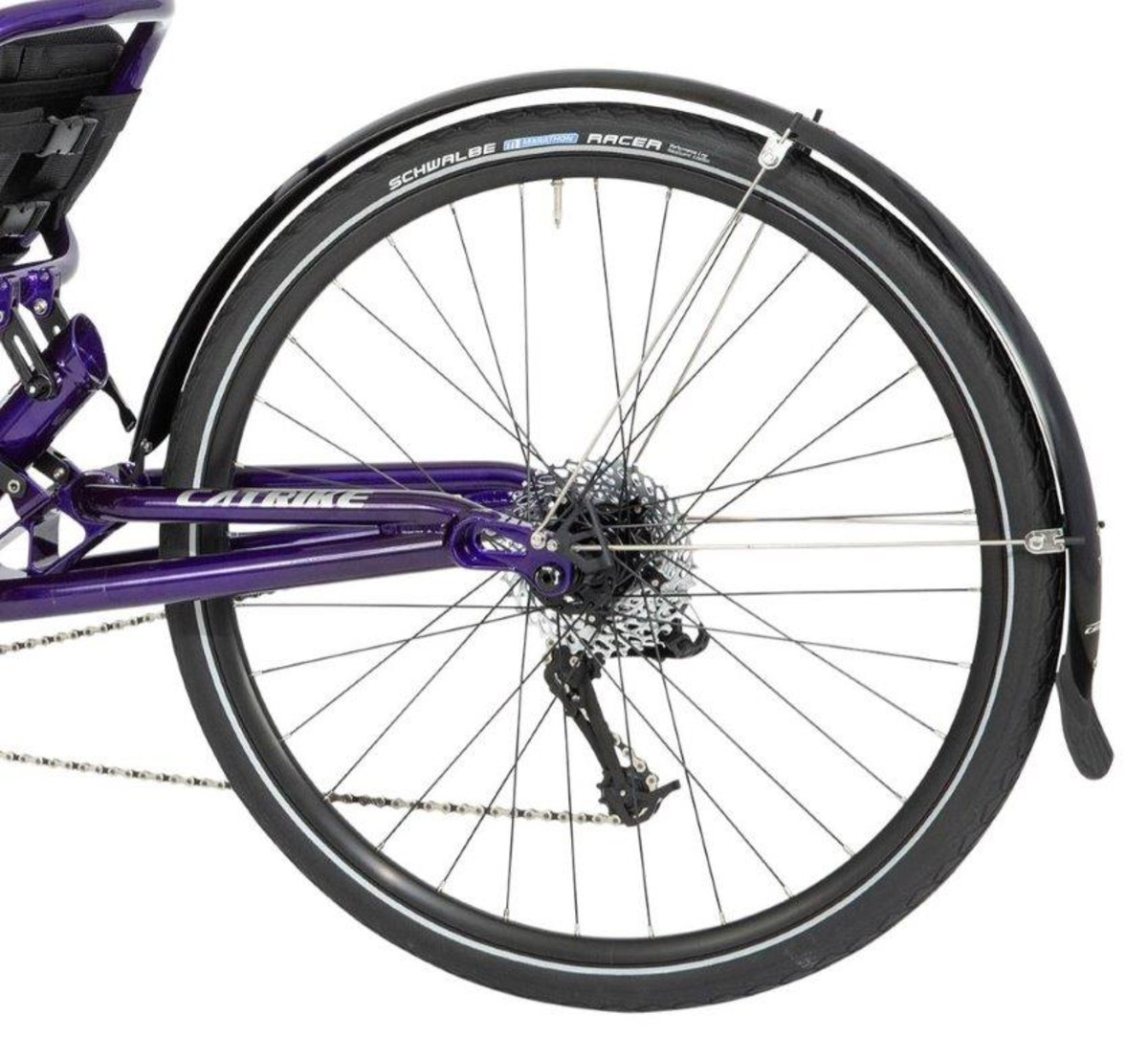

Fenders:Select
Chain:Select
Power Idler:Select
Return Idler:Select
,

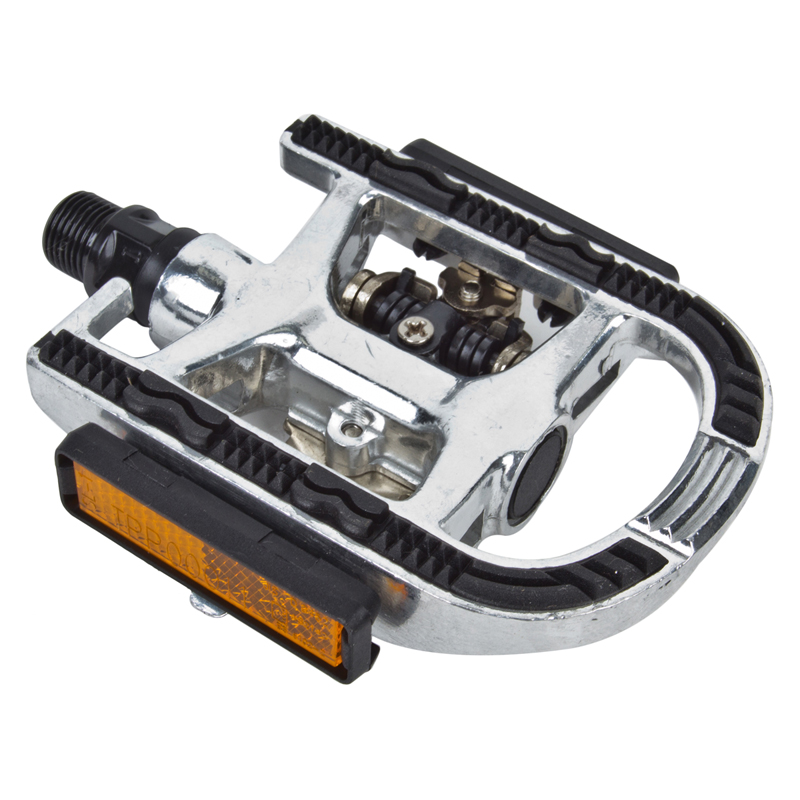

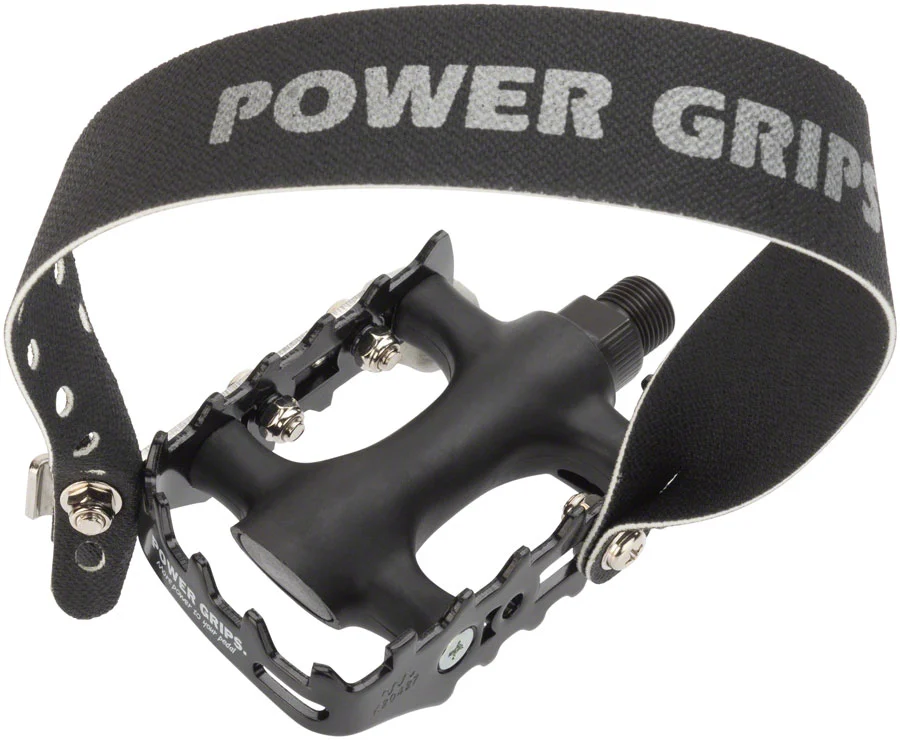

Pedals:Select
, , , , , , , , , , ,
Front Brakes:Select
Brake Levers:Select
,

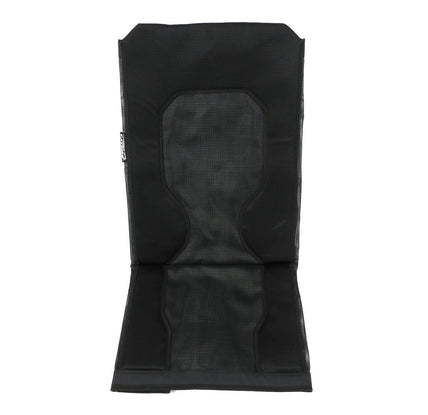

Seat Mesh:Select
Mirror:Select
Mirror Mounts:Select
, ,
Headrest:Select
Flag:Select
, , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , ,
Optional Water Bottle Holder:Select
, , , , , , , , , , , , , , , , , , , , , , , , , ,
Optional Water Bottle:Select
, , , , , ,
Optional Hydration System:Select

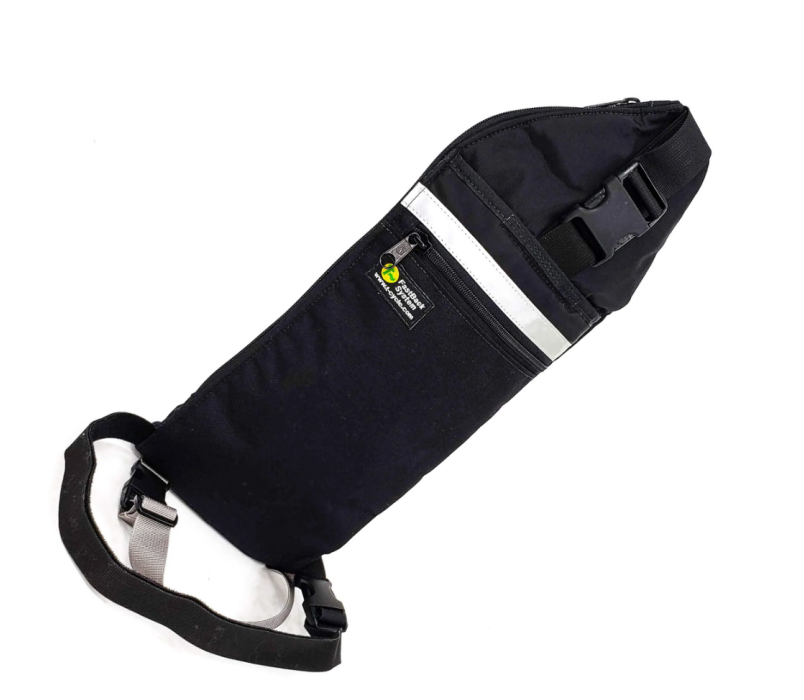

Optional Cargo Bag:Select
,
Optional Rear Cargo Rack:Select
Optional Pannier Bags:Select
, , , , , ,

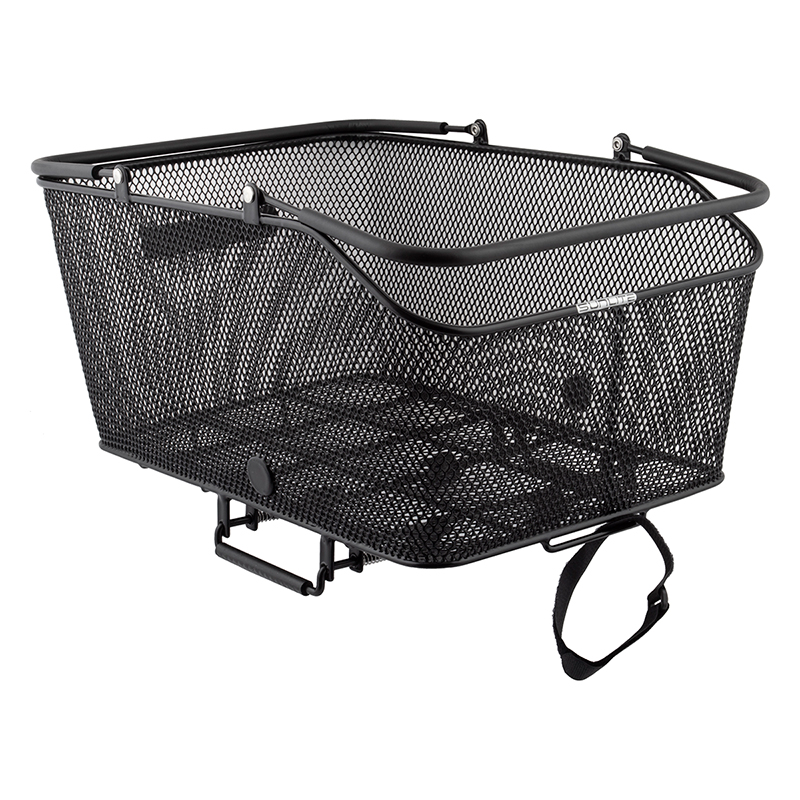

Optional Trunk Bag or Basket:Select
, , , , , , , ,
Optional Computers and GPS:Select
, , , , , , , , , ,
Optional Accessibility Aids:Select
,
Optional Headlights:Select
, , , , , , , , , , , , , ,
Optional Accessory Mount:Select
, ,
Optional Taillight:Select
, , , , , , , , , , ,

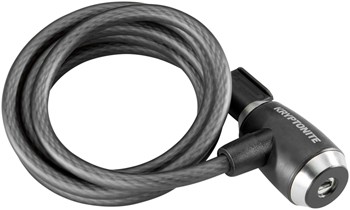

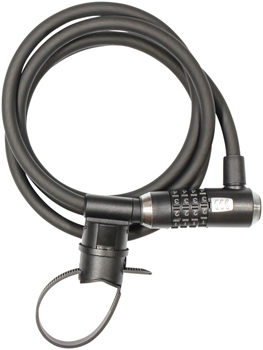

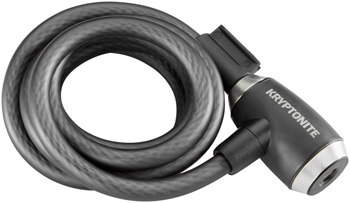

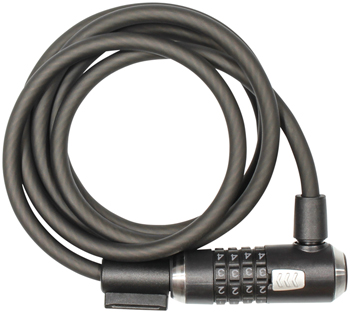

Optional Lock:Select
, , , , , , ,

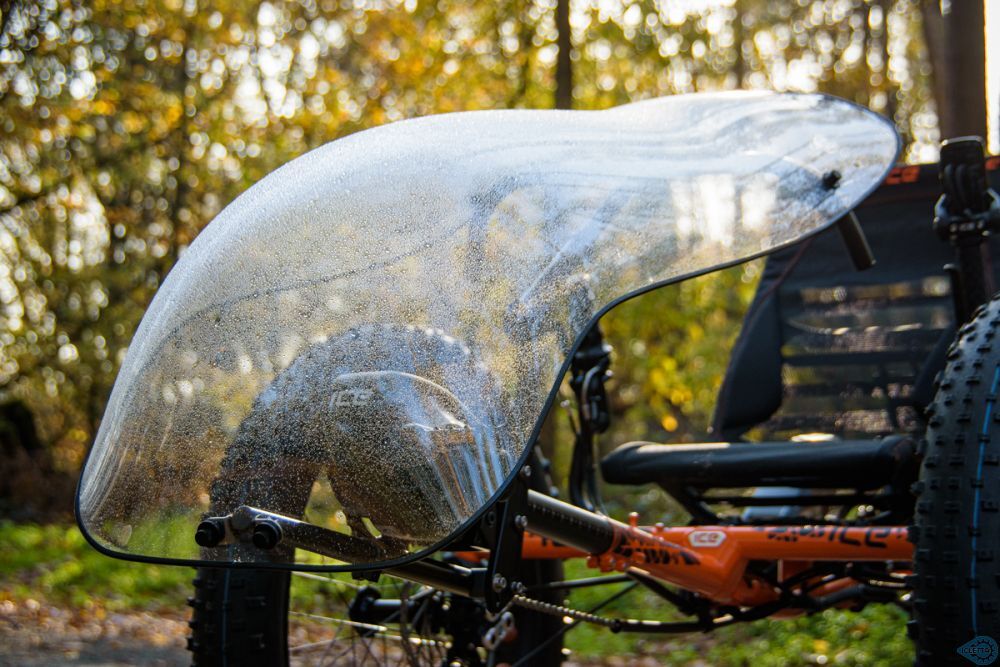

Optional Fairing:Select
,
Optional Tools:Select
,

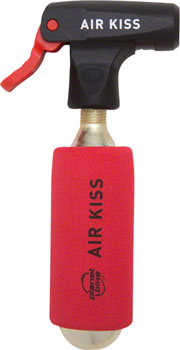

Optional Pump:Select
, , , , , ,

Please note that we do not charge for assembly and actual shipping costs to you are subsidized by Utah Trikes. Optional items chosen through our Trike Configurator will be installed on the trike prior to shipping. Any price differences shown between items here and our standard parts catalog reflect the cost of installation and/or additional hardware needed to install the item. If you would like to install the item yourself please choose the options separately through our catalog. Also note, our trike customizer calculates the price difference between the stock component configuration and the many upgrades that we offer. When you choose upgraded parts through this customizer you will not get the stock parts as the Trike Configurator calculates the price difference between parts. If you want all of the stock parts in addition to the upgrades you must choose the stock trike from here and then choose the full-price replacement components from our catalog. We are adding new options all the time. If there is an option you want us to add let us know. Please contact us if you have any questions.

Lots of Gearing

The Catrike Expedition comes stock with the FSA Gossamer triple crank up front and Catrike's adjustable boom. We have many different gearing options available. Use our configurator above to see what options are currently available.

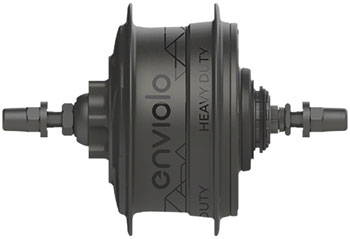

Gearing options are virtually endless. We have great options for both your front and rear gearing. If you're looking to get rid of derailleurs and like the idea of being able to shift while stopped or coasting, maybe an internal gearing solution is the right choice for you!

We are building more and more electric trikes and the Catrike Expedition is a great candidate for a motor. All of our motor kits allow you to choose the level of assist you want. That means that as you pedal the motor kicks in automatically providing additional power to your own pedaling efforts. We also provide a thumb-actuated throttle with our Bafang motor systems that act like the gas pedal in your car. Don't want to pedal? No worries, just push the throttle and go!

Currently we offer three different options here at Utah Trikes: the Bafang mid drive motor which ranges from 750 watts, 1000 watts, and our Ultra which is a 1000 watt motor with a 1400 watt max output. We also offer the "eCat Bosch Active Line Plus" which is a pedal assist only motor that comes as the factory motor upgrade for Catrikes. And Our newest option which is the "UTcustom eCat Bosch Sport Upgrade" which takes the configuration of the regular eCat motor system and replaces the Active Line Plus with the "Bosch Performance Line Sport" a class 3 motor with a 28 mph top speed.

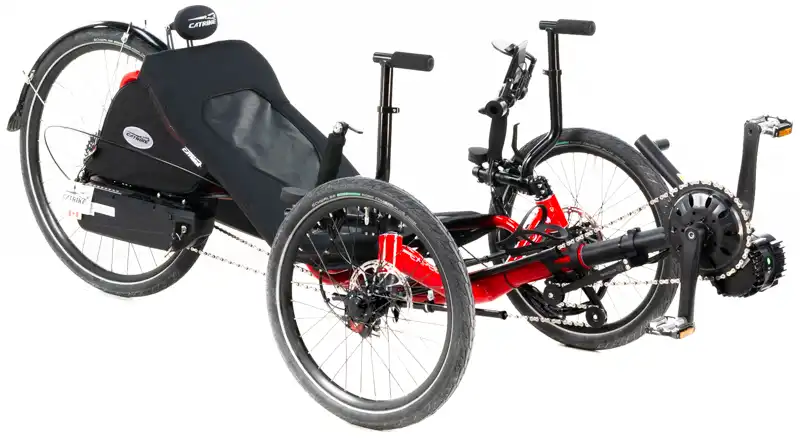

Boom-Mounted Bafang Middrive Motor
The Bafang Middrive comes in a 750 Watt, 1000 Watt, or Ultra. You'll want to choose the motor size based on your style of riding. We install the Bafang motor on your bottom bracket, which means it replaces the front crankset of your trike. The motor being mounted here means the motor can utilize the rear gearing ratios, making it the best for speed and climbing ability

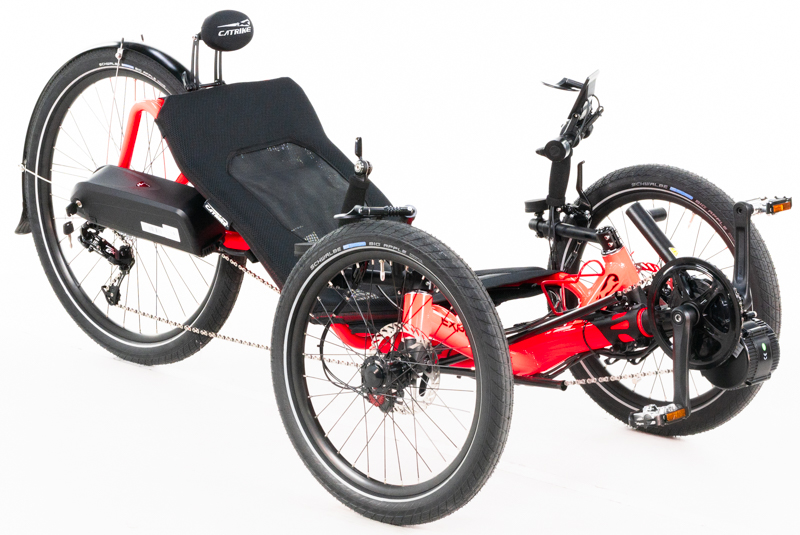

Boom-Mounted Bosch Motor
The Bosch line of motors comes in two varients; The classic "eCat Active Line Plus Kit" which is the Catrike factory motor option, or our new "UTcustom eCat Bosch Sport Upgrade" These are both pedal assist motor that do not feature a throttle, but make up for it with their built in torque sensor. Unlike the Bafang motor systems which have a cadence pedal assist system the Bosch motors utilize a torque sensor which allows for a more natural feeling assist that adjusts to the amount of torque you apply to the pedals. The Active Line Plus is a class 1 electric motor with a top speed of 20 mph, coming equipped with a 400 watt hour battery. The Performance Line Sport is a class 3 electric motor with a top speed of 28 mph, that comes equipped with a 500 watt hour battery.

Custom Mounting
We make our own custom battery mounts to keep the weight down low and near the rear axle. This keeps the weight of the battery from affecting handling and puts the battery in an easily accessible spot of the trike. All our battery systems come with an AC charger and a two-year pro-rated warranty. We make our own mounts to put the control console, throttle, and other buttons where you need them.

Want a motor?
Motor options are available through the configurator above in the FRONT GEARING sections. Need something custom? Just let us know!

Detailed Specifications

Frame Material 7005 Hardened Aircraft Aluminum
Trike Weight 35 lb 15,9 Kg
Total Weight Capacity 275lbs
Wheelbase 43 in 1092 mm
Wheel Track 29 in 737 mm
Total Length 77 in 1956 mm
Total Width 32.5 in 826 mm
Total Assembled Height 26 in 660 mm
Ground Clearance 4.5 in 114 mm
Bottom Bracket Height 16.5 in 419 mm
X-Seam Range 39/46 in 99/117 cm
Steering Type Direct Steer 3-Way Adjustable Handlebars
Steering Pivot Type FSA Zero Stack Headsets
Ackerman Steering Yes
Self Centering Yes
Turning Radius 9 ft 2,7 m
Turning Circle 18 ft 5,4 m
Seat Height 10 in 254 mm
Seat Width 14 in 356 mm
Seat Angle 37 deg
Country of Origin USA
Warranty Limited Lifetime
