Revolution 4X4 eQuad FS

Our Most Capable Quad Yet!

For years, Utah Trikes has been working on a secret project, and we are excited to introduce the all-new Revolution 4x4 eQuad FS! We started with the eQuad RS platform and took it on a journey to become our most reliable, efficient, and powerful quad.

We focused on enhancing adaptability, safety, and comfort while keeping the weight as low as possible and making it more capable than ever. We have now developed a quad that is puncture-proof, has custom full suspension, WAY more power, and more adaptive options than ever before. All based on the numerous requests we received from our customers.

Our quad is designed to handle anything you throw at it. We are confident that you will be impressed with this new off-road machine!

The Revolution 4x4 eQuad FS comes stock with dual batteries, integrated headlights and tail lights, and is equipped with your choice of either an Upright Seat or the Revolution Recumbent Seat, along with a safety belt and mirror.

Additionally, you have the choice of skid plate or adjustable footplates. You can also upgrade this machine to a Pedal Hybrid with the 14-speed Rohloff transmission and UTCustom Posi Differential. Scroll down for more exciting options!

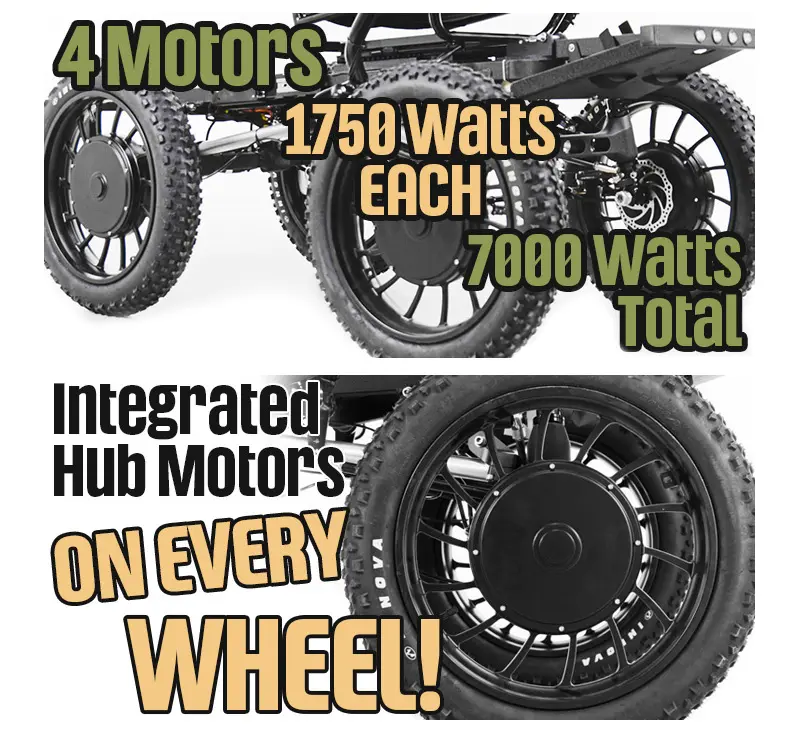

In order to construct a 4x4 quad, we needed to have strong hub motors. However, not just any hub motor would suffice. After much research and development, we needed to create our own motors with custom axles and the power we knew our customers want. Since we made our own motors we eliminated the need for breakable spokes by integrating them into a custom FAT mag wheel. With our Revoultion eQuad controller, each motor can produce 1750W of output, with a total peak output of a combined 7000W.

Each mag wheel features a 20mm 4130 ultra-hardened steel axle and anodized aluminum motor cover, which are designed to help you tackle steep hills and rough terrains with ease. Moreover, you never have to worry about breaking a spoke again!

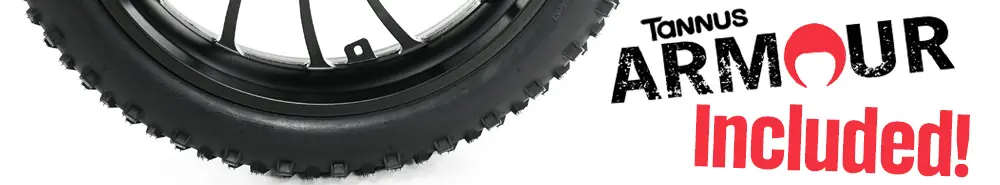

To prevent any flats, the Revolution 4x4 eQuad FS comes stock with Tannus Armour puncture protection. Tannus Armour is an excellent addition to safeguard your tube against 90% of flats with the help of 15mm of multi-cell foam. Say goodbye to pinch and puncture flats. And if you do get a flat, Tannus Armour has "Run-Flat" technology that lets you ride a few miles without damaging your rim.

Controller, Display, and Levels of Assist

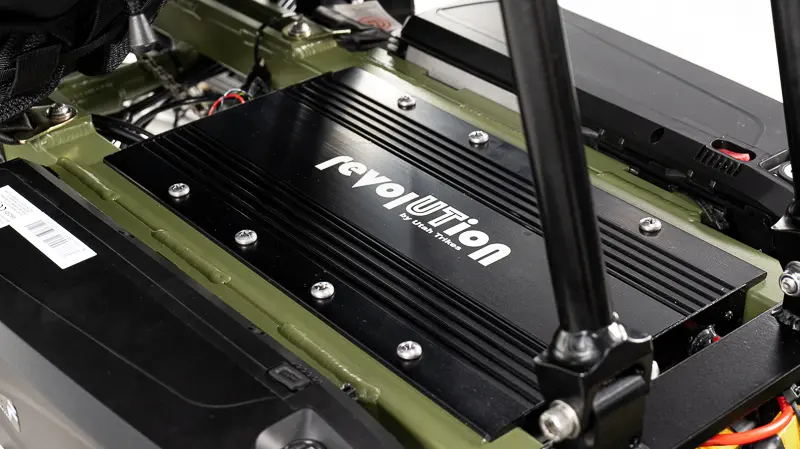

To take advantage of four powerful integrated hub motors, we needed a custom controller. With nothing on the market, we worked with one of the top eBike engineering companies in the world to create our custom Revolution controller. This new controller is loaded with features and includes (RDC) redundant motor control - meaning if a motor fails, it can still drive on 3, 2, or even 1 motor at a time. Never leaving you stranded.

This new controller also features reverse for both pedal-hybrid and non pedal hybrid 4x4's, a big upgrade from our original eQuad RS.

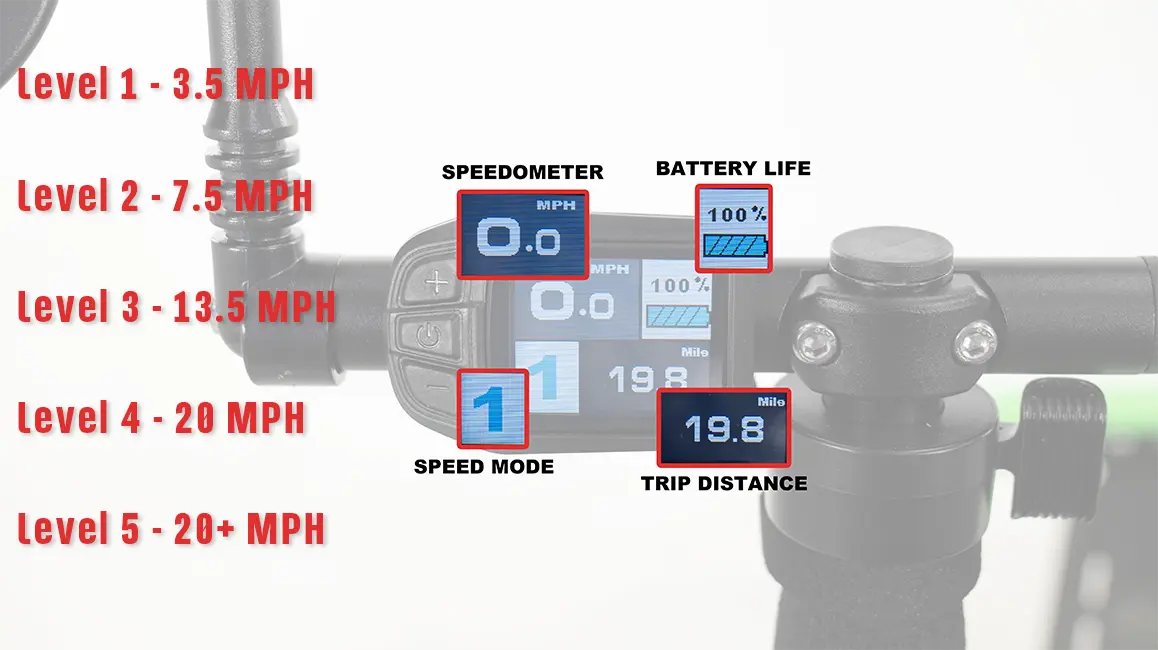

Our controller and motors come with a color LED display that has 5 levels of assist: Level 1 -3.5MPH Level 2- 7.5MPH Level 3 - 13.5MPH Level 4 - 20MPH Level 5 - 20MPH-Up to 30MPH

Please note that while the display is waterproof, the rest of the electrical components should NEVER be submerged in water.

Battery Power

Our UL listed (SGS Certified) 1600WH dual batteries offer a range of approximately 20 miles. However, if you need more range, don't worry, you have the option of upgrading to 4 or 6 batteries adding not only additional range, but 800WH per battery.

(Range up to roughly 120 miles, and 4800WH maximum) Keep in mind that with adding more than the stock two batteries, you will need to upgrade to our custom Cargo Rack to properly mount the additional batteries.

Dual Hydraulic Brakes

For such a large vehicle the 4x4 needs an efficient braking system for safety. That's why we have equipped it with all new dual hydraulic brakes at both the front and rear ends of the quad.

Our hydraulic brakes come with locking levers to keep the quad parked when it's not being used or for extra stability when you're transferring to or from your eQuad.

These brakes are simple and easy to maintain. You can take your quad to any reputable trike/bike shop and they will be able to do general maintenance and yearly tune-ups easily.

Steering

With its beefier suspension, we upgraded all steering components on the 4x4 eQuad FS to M10 hardware vs the M8 hardware from our original eQuad RS. Our tiller steering mechanism is patented and designed to be intuitive and easily adjustable. Unlike other steering systems, the tiller steering uses a very intuitive "push/pull" motion.

The steering tie-rods have quick-release rod ends to enable you to fold the handlebars down for storage and transportation. Folding the handlebars only requires pulling back on the tie-rod spring to release the corresponding ball joint. And voila! Your handlebars are neatly folded out of the way.

All-New Custom Suspension

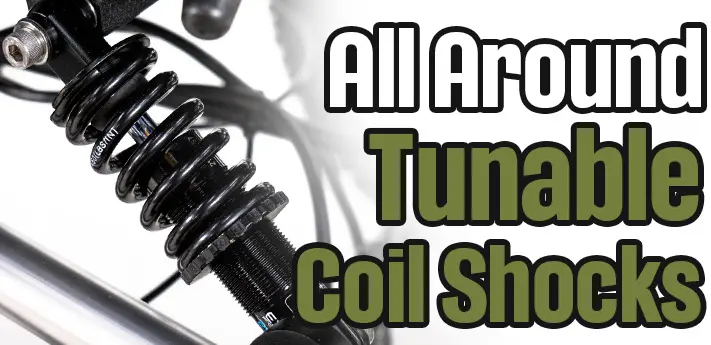

The Revolution 4x4 eQuad FS suspension system includes adjustable coil-over shocks in the front and rear. With more suspension travel than ever, navigating challenging off-road terrain has never been more fun.

To tune for specific riders, we offer 3 different spring options to better adapt to all sizes of riders and cargo loads.

You can customize the preload and top-out to your liking by twisting the threaded collar on the shock left or right. This means you have infinite options to tailor the suspension to your preferences, which ensures you get the highest level of comfort possible!

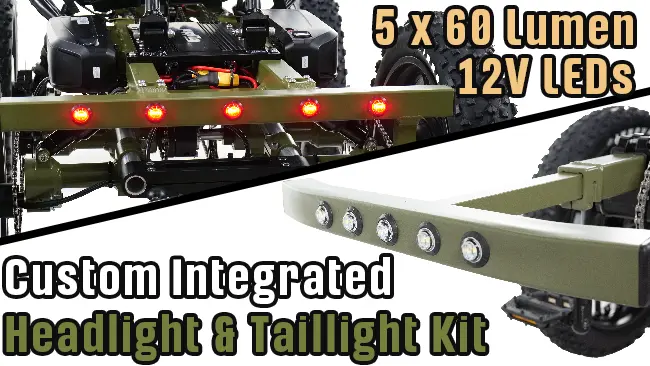

Custom Integrated Lighting

Pedal-Hybrid Option

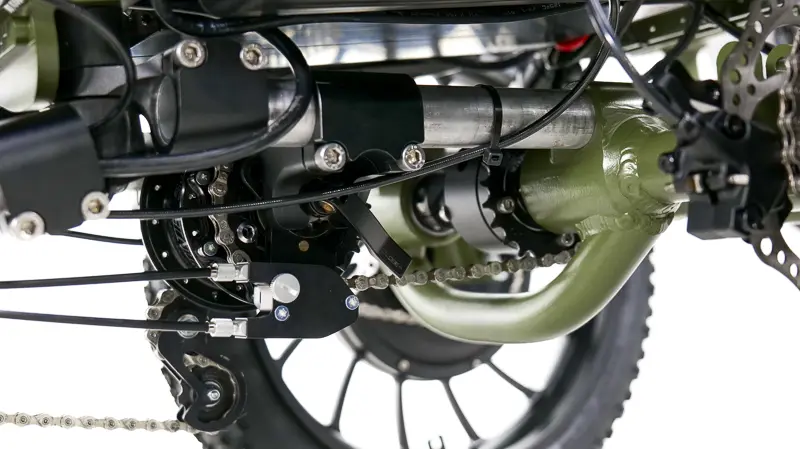

Upgrade your 4x4 eQuad FS with our pedal system for a true Human/Electric Hybrid machine! With this upgrade, you'll get our Revolution Posi Differential Kit, 14-speed Rohloff hub (which is the best-integrated hub for quads and trikes), and our newly re-designed full-length Rohloff shifter. This combo just can't be beat.

Seat Options

You can choose to go with the standard Upright seat with easy slides, or our adjustable Recumbent seat with custom Revolution mesh/cargo bag. All 4x4 eQuads will come with a lap belt for your safety.

Front Bumper

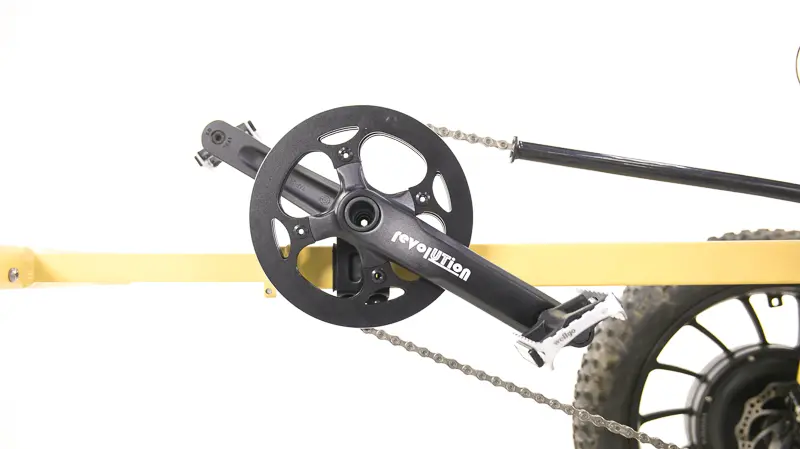

Depending on the configuration you want, we offer either our custom skid plate-style front bumper or platform footplates. Both feature an easy quick release mechanism to quickly remove the bumper for storage or transportation. If you opt for the Pedal Hybrid quad, the attached front crank is able to slide in and out to adjust to rider height and also features the same quick release mechanism. We are offering the front bumpers in standard length, or XL sizes.

Adaptability

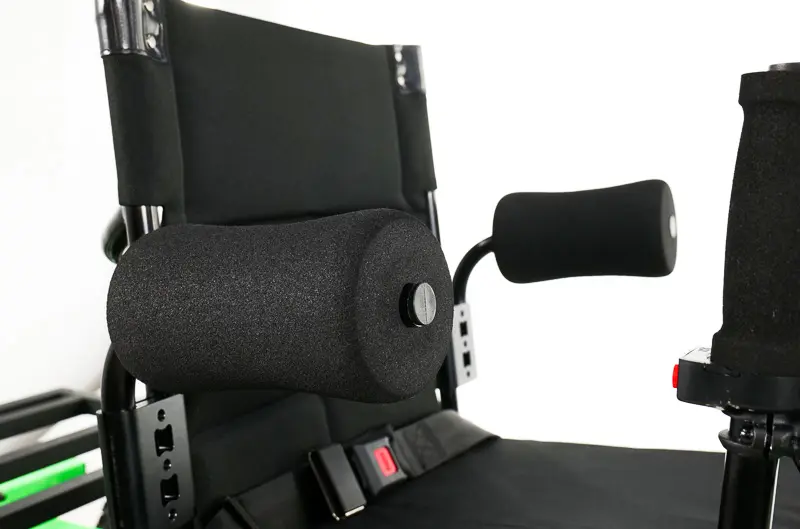

Our Revolution armrests are fully adjustable, raise or lower them to your preference! You can even flip them to sit lower. This simple design is so versatile, and truly ready to be used in any fashion most comfortable to YOU.

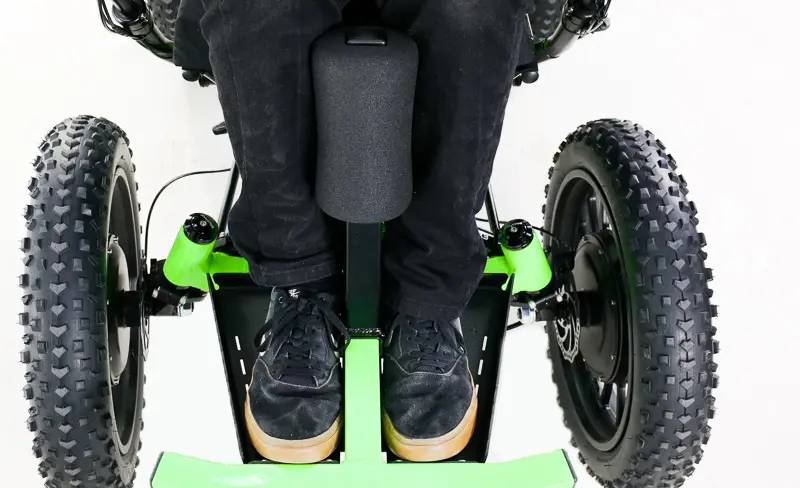

A new addition to our catalog is our Revolution Leg Rest. We make every leg rest in our shop, and can be cut to a custom length if needed. Complete with extra-thick foam and a leg band (not pictured) to secure your legs if necessary. Now you can keep your legs straight and away from the wheels without sacrificing comfort for safety!

Headrest

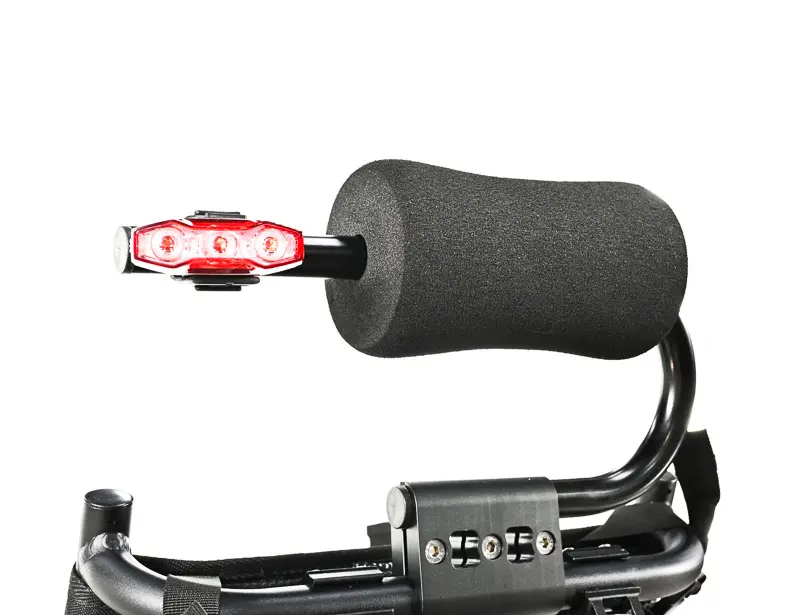

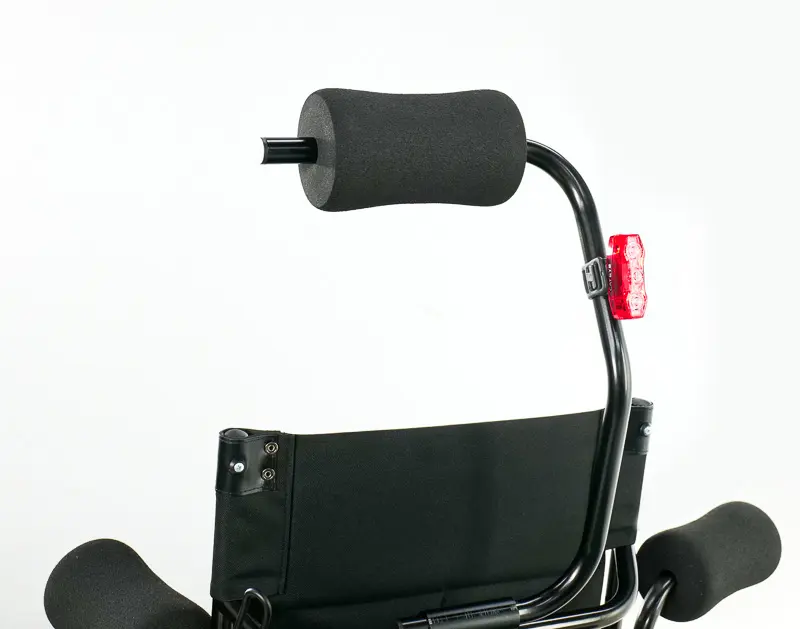

We have a custom-made Revolution Super Headrest available for both the upright seat or recumbent seat. It is paired with our shop's favorite Cateye ViZ450 Taillight featuring 5 LEDs that produce a massive 450 lumens on Daytime Hyperflash mode. The taillight has a maximum run time of 70 hours on Flash mode and comes with a rechargeable 1000mAh lithium ion battery. Additionally, it has 4 modes: Constant, Flashing, and Daytime Hyperflash to ensure that you can be easily seen while sharing trails and roadways.
