Product Category: Catalog → Trikes View all Revolution products

Revolution Goblin Mini Quad - Electric eQuad

$4950 Starting at $3950 SALE PRICE

As low as $165 per month
Apply Now!

Availability: 10+ In Stock

A quad this small AND a quad this fun!? That's the Revolution Goblin Mini Quad!

Named after Utah's famous Goblin Valley, this is an all new compact, and portable electric quad! With a full length of 62.5 inches, and 28.5 inches wide this quad is made to be taken anywhere you can imagine. From the campsite to the trail it can go anywhere.

TOTAL: $3950

+ $500 Shipping

CLICK AN OPTION BELOW TO CONFIGURE

Rider Height:	Select Rider Height

Color:	Select

Stock Color: Crinkle Black

Neon Goblin Green

Front Brakes:	Select

These hydraulic brakes are auto-adjusting for the best braking action. The levers feature locking/parking levers and have integrated switches for motorized systems.

Stock Front Brakes: Independent Right & Left Hydraulic Brakes

Bengal Ares 7.5

Dual Pull Hydraulic Brakes - Left Hand + $200.00

Bengal Ares 7.5

Dual Pull Hydraulic Brakes - Right Hand + $200.00

Seat:	Select

Stock Seat: UTCustom Recumbent Seat

Seat Mesh:	Select

We are pretty proud of this seat mesh. It started out as a remake of the Catrike Muscle Trikes we had a few years ago. Then we found an even more breathable material. then we triple reinforced the strapping. And finally we put a custom cargo bag on the back complete with insulated water bladder pouch! We are not sure if this seat will actually make you faster, but your trike will definitely look cooler! 33 inches long x 15 nches wide x 11 inches tall - just under 5 lbs in weight

Stock Seat Mesh: Utah Trikes Performance Recumbent Seat Mesh w/Cargo Bag

Optional Mirror:	Select

None (Click for options)

The Mirrycle Mirror is by far the most popular mirror for recumbent trikes. It is well made, attaches to any 7/8in tube or handlebar and is easily adjustable. This is an essential safety item for anyone riding a recumbent bike or trike on the street.

Mirrycle Mirror Adjustable Mirror + $19.99

Double Mirrycle Mirrors + $39.95

Optional Headrest:	Select

None (Click for options)

Serious riders want serious comfort. That's why we created the Super Headrest. Our headrest is adjustable and functions as an additional support for your shoulders, neck, and head. Compatible with All Catrikes

UTCustom Adjustable Super Headrest + $150.00

Optional Lighting System:	Select

None (Click for options)

5 sixty lumen 12 volt LED headlights and taillights integrated into the front and rear bumpers. These lights are powered from the motors battery.

UTCustom Integrated Lighting Kit - Factory Install ONLY + $600.00

UTCustom Integrated Bumper Lighting with Removable Light Whip + $800.00

Power Assist:	Select

After years of testing, we are pleased to announce our new 1000W Trike Motor. It was designed to use the same cabling and console as the popular Bafang BBS motors, and the proven Eunorau 48V25A Sinewave controller. And, because it was designed for a trike it features reverse, so backing up has never been simpler.

Stock Power Assist: UTCustom 1000W Hub Motor w/Reverse

Batteries:	Select

Includes mounting sled and 2A charger. This high capacity battery features a USB outlet for charging phones and GPS. It has a key lock to prevent the battery from being removed.

Stock Batteries: UTCustom 48V Li-ion Battery

Optional Trailer Hitch:	Select

None (Click for options)

Haul even more cargo with the eQuad trailer hitch.

Recommended towing capacity of 100lbs Maximum

Revolution eQuad Bolt-On Rear Trailer Hitch + $100.00

Tires:	Select

Durable mud tire with tall, aggressive lateral knobs.

Stock Tires: 20x2in Knobby Tires / Standard Wheelset - Smoke

The most durable and capable 20 inch tire that we carry. Perfect for off roading and rough terrain.

20x4 Knobby Tires / Fat Wheelset - Innova + $400.00

Great eBike tire. Fat but not too fat.

20x3 Street Tires / Fat Wheelset - Kenda Flames + $316.00

Motor Display/Interface:	Select

Color Display, 9-Level Power, Battery Percentage, Speedometer, Trip Meter, Wattmeter, Integrated Power Switch

Stock Motor Display/Interface: Bafang 500C Color Display

- Real-time Battery Power Show Clearly And Accurately. - Color Full LCD Display & Waterproof. - AVGSPEED, MAX SPEED, SPEED(Real-time). - Total Kilometer/Mile Distance , Time ,Speed and PAS Level Indicato.

Bafang 600C Color Display + $30.00

Optional Puncture Protection:	Select

None (Click for options)

Tannus Armour Upgrade for Quads - Fat Tires + $330.00

Tannus is the best puncture protection around, and certainly a shop favorite! 15mm of puncture protection through the top and 2mm of puncture protection on the sidewalls. Included 4 Tannus Armour Inserts applicable to your chosen tire size!

Tannus Armour Upgrade for Quads - Narrow Tires + $220.00

Please note that we do not charge for assembly and actual shipping costs to you are subsidized by Utah Trikes. Optional items chosen through our Trike Configurator will be installed on the trike prior to shipping. Any price differences shown between items here and our standard parts catalog reflect the cost of installation and/or additional hardware needed to install the item. If you would like to install the item yourself please choose the options separately through our catalog. Also note, our trike customizer calculates the price difference between the stock component configuration and the many upgrades that we offer. When you choose upgraded parts through this customizer you will not get the stock parts as the Trike Configurator calculates the price difference between parts. If you want all of the stock parts in addition to the upgrades you must choose the stock trike from here and then choose the full-price replacement components from our catalog. We are adding new options all the time. If there is an option you want us to add let us know. Please contact us if you have any questions.

Compact and Powerful!

The Revolution Goblin Mini Quad is our most compact and transport-friendly electric quad yet�just 62.5 inches long (50 inches with the boom removed) on the stock configuration.

Don�t let its size fool you: a 1000-watt motor powers the Mini Quad, delivering serious hill-climbing ability and a top speed of up to 15 mph. It�s a small package with big performance.

An Easy Storage Option

For compact quad storage you can position your Revolution Goblin upright on its seat frame and rear wheels, taking up minimal floor space. This makes it ideal for garages, sheds, or even storing in smaller apartments.

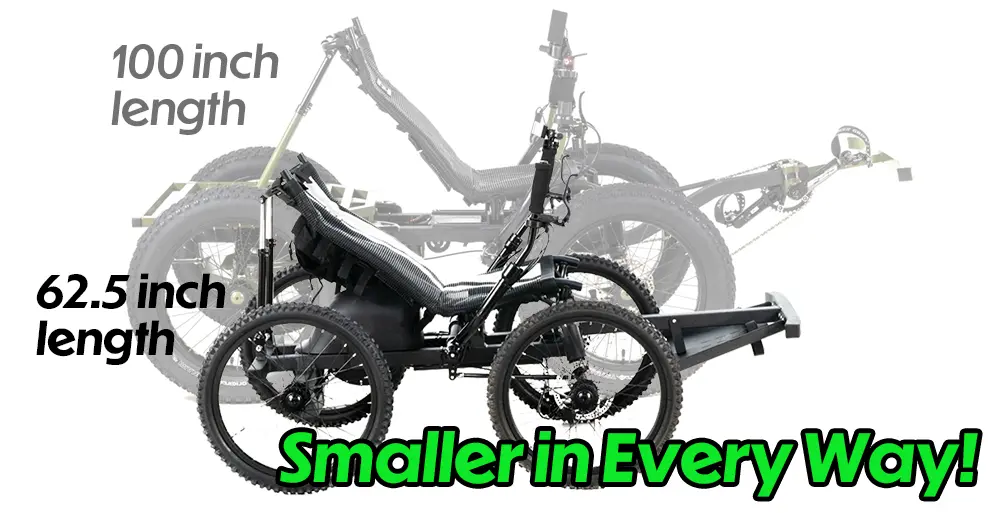

The Goblin VS The eQuad

Compared to our full-sized eQuads, the Mini is 38% smaller! Its smaller size makes it easier to maneuver, simpler to store and take with you, and makes it all the more fun. The Goblin has also been simplified with a solid rear axle and no suspension, but thanks to its recumbent seat and short wheelbase, comfort is still a high point.

Built with Accessibility in Mind

Designed as a compact off-road mobility solution, the Mini Quad includes:

Adjustable tiller steering
Fold-down bars for easy transfers from a wheelchair
Foot platform with Velcro straps for support
It also offers reverse gear, a critical feature for maneuvering in tight spaces.

Who is the Revolution Goblin for?

The Goblin is a compact powerful electric quad. Able to hit speeds of 15 mph, and climb rough terrain with 160nm of torque. With a strong frame and weight capacity of 250 lbs nearly anyone can hop on this little quad and have a blast.

Some things to keep in mind for the type of ride you want from the Goblin:

Are you looking for an affordable, transportable e-quad
Do you not need to carry heavy cargo
Does your quad need to fit in compact spaces
Its also great if you are looking for an off-road accessibility aid with reverse and adjustable features. It�s also OPDMD-compliant and trail-friendly, making it a great pick for national parks and public paths, where ebikes may not be allowed (restriction may apply, always check before you ride).

The Goblin has a cockpit width of 19 inches. Bigger riders may have a hard time riding comfortably.

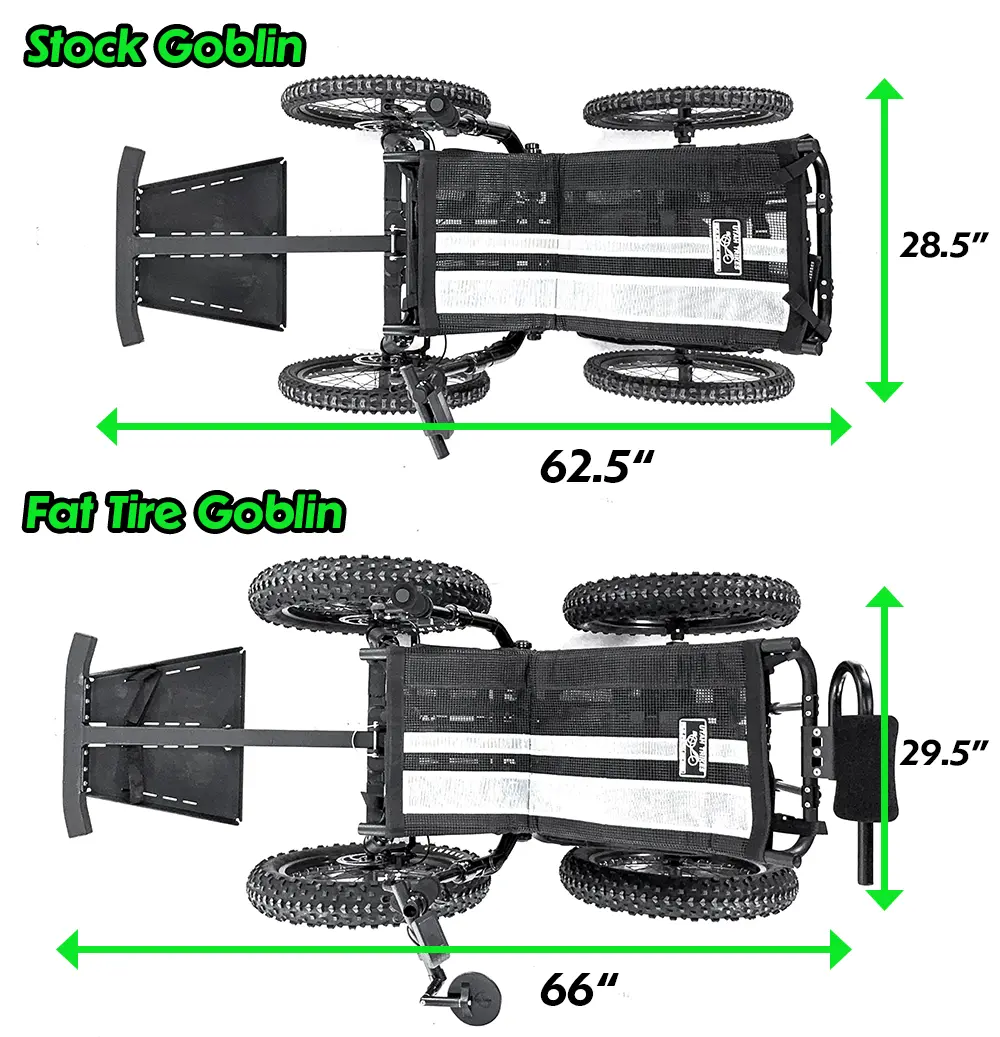

Slim Tires or Fat Tires?

With the Revolution Goblin you have more than just 1 tire option.

The stock tires are 20x2 inch knobby tires great for light offroad and casual road riding.

If your looking to go to more rugged terrain the 20x4 inch knobby tire upgrade will be perfect for you.

And if you want to just stick to tearing up the road there is a 20x3 inch road tire upgrade you can choose as well!

With the 20x4 and 20x3 inch tires we have to extend the boom for better turning. So be aware of the sizing changes of the Goblin with these upgrades

Don't Forget Accessories!

In classic Utah Trikes fashion we have plenty of accessories you can add onto your new mini quad. From fat tires to a trailer hitch with a 150 lbs towing capacity, you can customize the Goblin to your hearts content.

Detailed Specifications
Frame Material	Aluminum
Trike Weight	Stock - 86 lbs \| All Configs - 104 lbs
Total Weight Capacity	250 lbs
Total Length	Stock - 62.5 in \| Fat Tire - 66 in
Total Width	Stock - 28.5 in \| Fat Tire - 29.5 in
Total Assembled Height	36 in
Ground Clearance	Rear - 5 in \| Front - 8.25 in
Folded Size	Stock - 50 in \| Fat Tire - 52 in
Steering Type	Tiller Steering
Seat Height	21.5 in
Seat Width	15 in
Country of Origin	USA
