Starting at $3950
The following trikes are available for order:
Qty 1: Catrike Factory Color - Firefly Yellow - IN STOCK NOW
Qty 1: Catrike Factory Color - Moon Rock Silver - IN STOCK NOW
Qty 1: Catrike Factory Color - Liquid Black - IN STOCK NOW
Qty 1: Candy Purple - IN STOCK NOW
Qty 1: Catrike Factory Color - Lava Red - IN STOCK NOW
Qty 10: Catrike Factory Color - Electric Blue - IN STOCK NOW
Qty 1: Catrike Factory Color - Atomic Orange - IN STOCK NOW
Qty 1: Catrike Factory Color - Eon Green - IN STOCK NOW

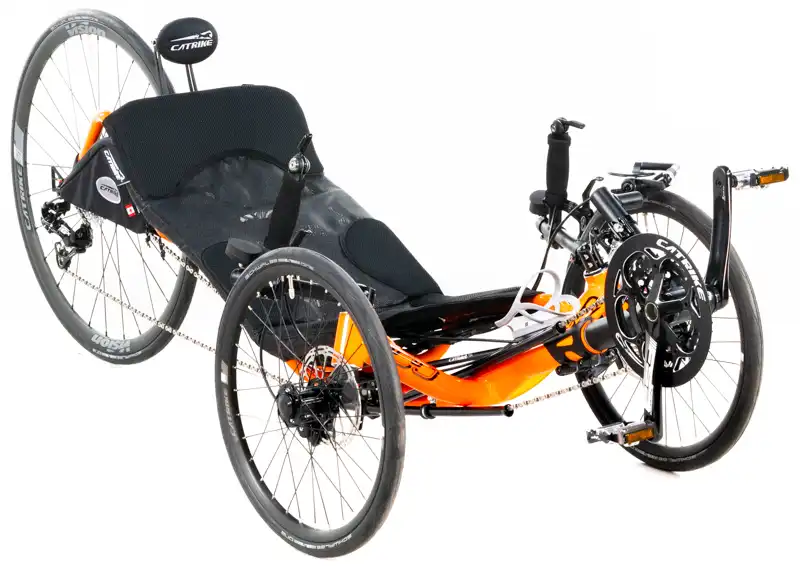

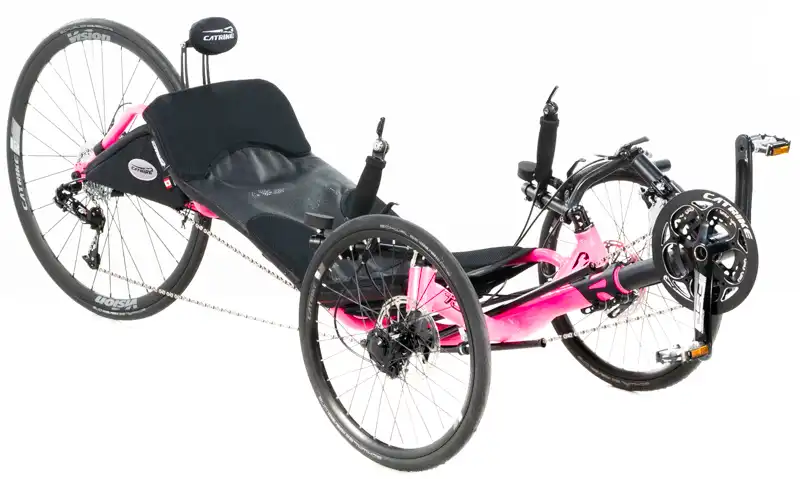

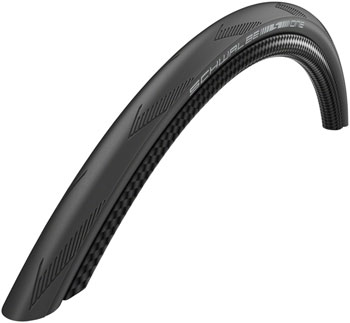

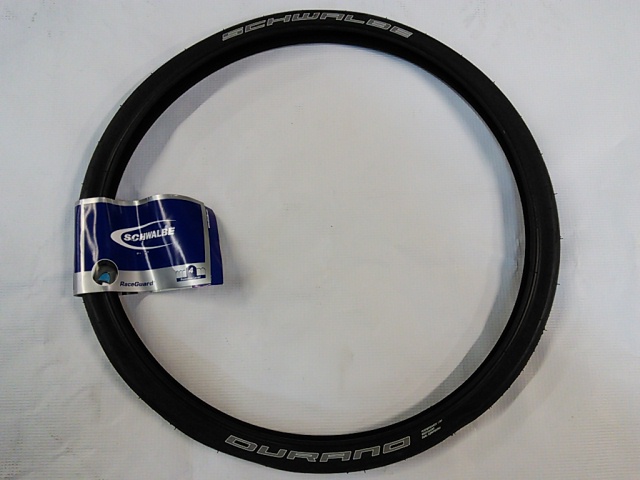

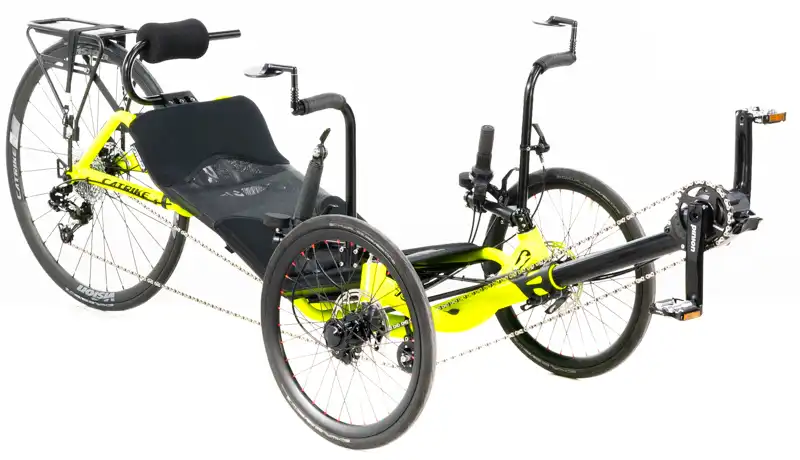

The Catrike 700 comes stock with the Schwalbe Durano Racing Tires. The 28 inch 700c Durano in the rear and the 20 inch 406 Duranos on the front. This tire is an amazing road tire with mileage and grip at the highest level! These tires are optimized for high performance and used by Professional athletes and cyclists for training year round.
The Catrike Dumont comes stock with the FSA Gossamer triple crank up front and Catrike's adjustable boom. We have many different gearing options available. Use our configurator above to see what options are currently available.

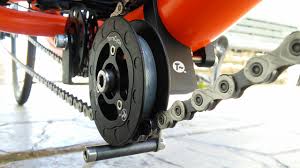

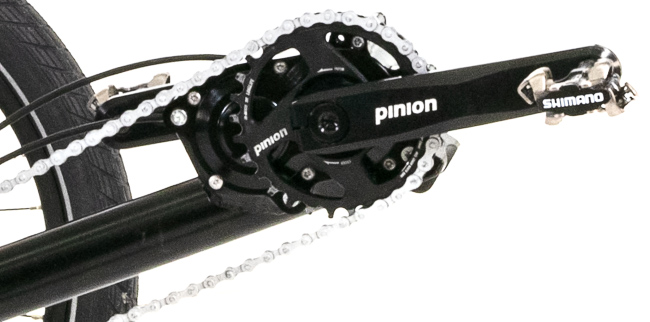

Gearing options are virtually endless. We have great options for both your front and rear gearing. If you're looking to get rid of derailleurs and like the idea of being able to shift while stopped or coasting, maybe an internal gearing solution is the right choice for you!
We are building more and more electric trikes and the Catrike 700 is a great candidate for a motor. All of our motor kits allow you to choose the level of assist you want. That means that as you pedal the motor kicks in automatically providing additional power to your own pedaling efforts. We also provide a thumb-actuated throttle with our Bafang motor systems that act like the gas pedal in your car. Don't want to pedal? No worries, just push the throttle and go!
Currently we offer three different options here at Utah Trikes: the Bafang mid drive motor which ranges from 750 watts, 1000 watts, and our Ultra which is a 1000 watt motor with a 1400 watt max output. We also offer the "eCat Bosch Active Line Plus" which is a pedal assist only motor that comes as the factory motor upgrade for Catrikes. And Our newest option which is the "UTcustom eCat Bosch Sport Upgrade" which takes the configuration of the regular eCat motor system and replaces the Active Line Plus with the "Bosch Performance Line Sport" a class 3 motor with a 28 mph top speed.
Boom-Mounted Bafang Middrive Motor
The Bafang Middrive comes in a 750 Watt, 1000 Watt, or Ultra. You'll want to choose the motor size based on your style of riding. We install the Bafang motor on your bottom bracket, which means it replaces the front crankset of your trike. The motor being mounted here means the motor can utilize the rear gearing ratios, making it the best for speed and climbing ability
Boom-Mounted Bosch Motor
The Bosch line of motors comes in two varients; The classic "eCat Active Line Plus Kit" which is the Catrike factory motor option, or our new "UTcustom eCat Bosch Sport Upgrade" These are both pedal assist motor that do not feature a throttle, but make up for it with their built in torque sensor. Unlike the Bafang motor systems which have a cadence pedal assist system the Bosch motors utilize a torque sensor which allows for a more natural feeling assist that adjusts to the amount of torque you apply to the pedals. For a sleek racing trike like this one a pedal assist motor is perfect for maximizing speed while still keeping the natural feeling pedal power that comes with the 700.
The Active Line Plus is a class 1 electric motor with a top speed of 20 mph, coming equipped with a 400 watt hour battery.
The Performance Line Sport is a class 3 electric motor with a top speed of 28 mph, that comes equipped with a 500 watt hour battery.
Custom Mounting
We make our own custom battery mounts to keep the weight down low and near the rear axle. This keeps the weight of the battery from affecting handling and puts the battery in an easily accessible spot of the trike. All our battery systems come with an AC charger and a two-year pro-rated warranty.
We make our own mounts to put the control console, throttle, and other buttons where you need them.
Want a motor?
Motor options are available through the configurator above in the FRONT GEARING sections. Need something custom? Just let us know!
Colors
Catrike Manuals
Detailed Specifications | |
---|---|
Frame Material | 7005 Hardened Aluminum |
Trike Weight | 34 lb |
Total Weight Capacity | 275 lb |
Wheelbase | 46 in |
Wheel Track | 27.5 in |
Total Length | 82 in - varies according to riders height |
Total Width | 31 in |
Total Assembled Height | 26.75 in |
Ground Clearance | 4 in |
Bottom Bracket Height | 17.5 in - varies according to riders height |
X-Seam Range | 39-46 in |
Steering Type | Direct |
Steering Pivot Type | FSA Zero Stack Headsets |
Turning Radius | 10 ft |
Turning Circle | 20 ft |
Seat Height | 8.5 in |
Seat Width | 14 in |
Seat Angle | 25 deg |
Country of Origin | USA |
