Product Category: CatalogRear Wheel       View all Enviolo products

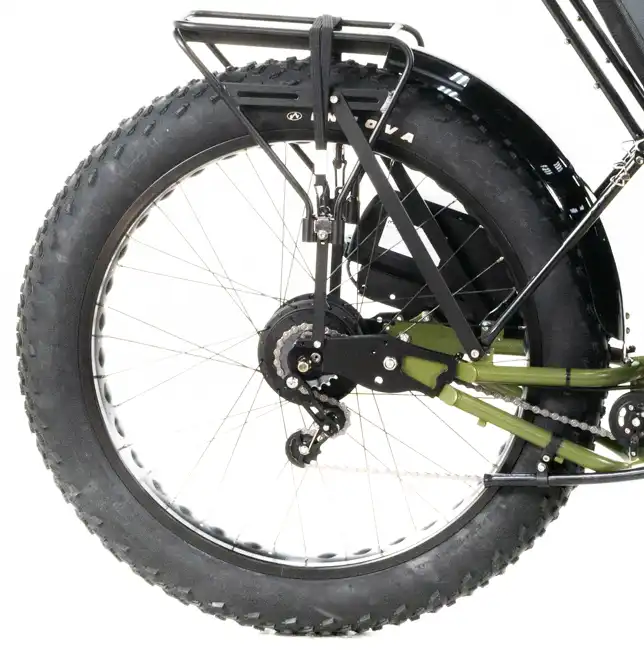

Enviolo CVP Heavy Duty Wheel Kit - 26x4.0 32H Fat Wheel

$999.00

Quantity:

See availability of parts below

Most popular on our fat wheel trike models.

-Disc Brake Compatible
-Black Rim
-Silver Spokes

This is a package product.
Use the "Add to Cart" button above to add the entire package to your order.

This package contains the following:

QTY 1

Enviolo CVP Internally Geared Hub - CA Heavy Duty, 40t Spline, 32 Hole, Disc, Black (1 In Stock)
Enviolo hubs use the NuVinci planetary transmission to provide stepless shifting and near silent operation. Shift at any time- while pedaling, coasting or while stopped. Enviolo hubs are designed to withstand the high torque of an eBike while being visually maintenance-free. The Heavy Duty hub is engineered for heavier loads over shorter distances with or without Ebike motors. Rated for up to 250 kg permissible vehicle weight and 100Nm nominal torque.

Die-Cast & machined housing
380% gear ratio range
Accepts up to 80 Nm continuous torque
Suitable for up to 280kg gross weight

Individual Price: $510.00


QTY 1

Wheelbuilding - Standard Lacing and Truing

This item is currently not available separately


QTY 1

Origin8 26x4.0 DAT-PRO-80 - 32H Black Rim
-Presta Valve

-Width ID: 73 (Inside Diameter)
-Width OD: 80 (Outside Diameter)
-Profile: 24.5
-ISO: 559
-Wall: Double
-Tire Compatibility: Tube Only

This item is currently not available separately


QTY 1

Origin8 Pro Pulsion UL Chain Guide Tensioner (10+ In Stock)
This is our preferred tensioner to use with the various Internally Geared Hub conversions. You will definitely want to use this tensioner with the Nuvinci N360. It has a lightweight, sturdy design, and will adjust to give you perfect chain tension.

Individual Price: $62.19


QTY 1

Enviolo Manual Controller - 2200mm, Black
Enviolo manual controller/shifter for internally geared hubs.

Individual Price: $24.00


QTY 1

NuVinci/Enviolo Standard Hardware (10+ In Stock)
Small parts for the N330, N360 and N380 NuVinci Hubs.

-Includes acorn nuts, no-turn washers, sprocket snap ring, spacer, LH nut

This item is currently not available separately


QTY 1

Enviolo CA Hub Interface (10+ In Stock)

Individual Price: $19.99


QTY 1

Dimension 20t Splined Cog BMX or Singlespeed (10+ In Stock)
Dimension Steel Cogs are splined for BMX and singlespeed hub compatibility. Compatible with NuVinci N360 and N380

-Steel with chrome finish
-Cogs are splined for Shimano BMX and singlespeed hub compatibility
-Compatible with 1/2" x 1/8" chains

Individual Price: $7.95


QTY 32

Custom DT Swiss Champion Spoke and Nipple - Silver (10+ In Stock)
Building your own wheels? Or, maybe you just want a spare spoke to take on your trip? We do our own wheelbuilding in house and cut our own spokes to length. When ordering online please let us know what length and what type of rim it is going on. So you can get the best fit.

Individual Price: $1.50
